Massenza MI8

Massenza MI8

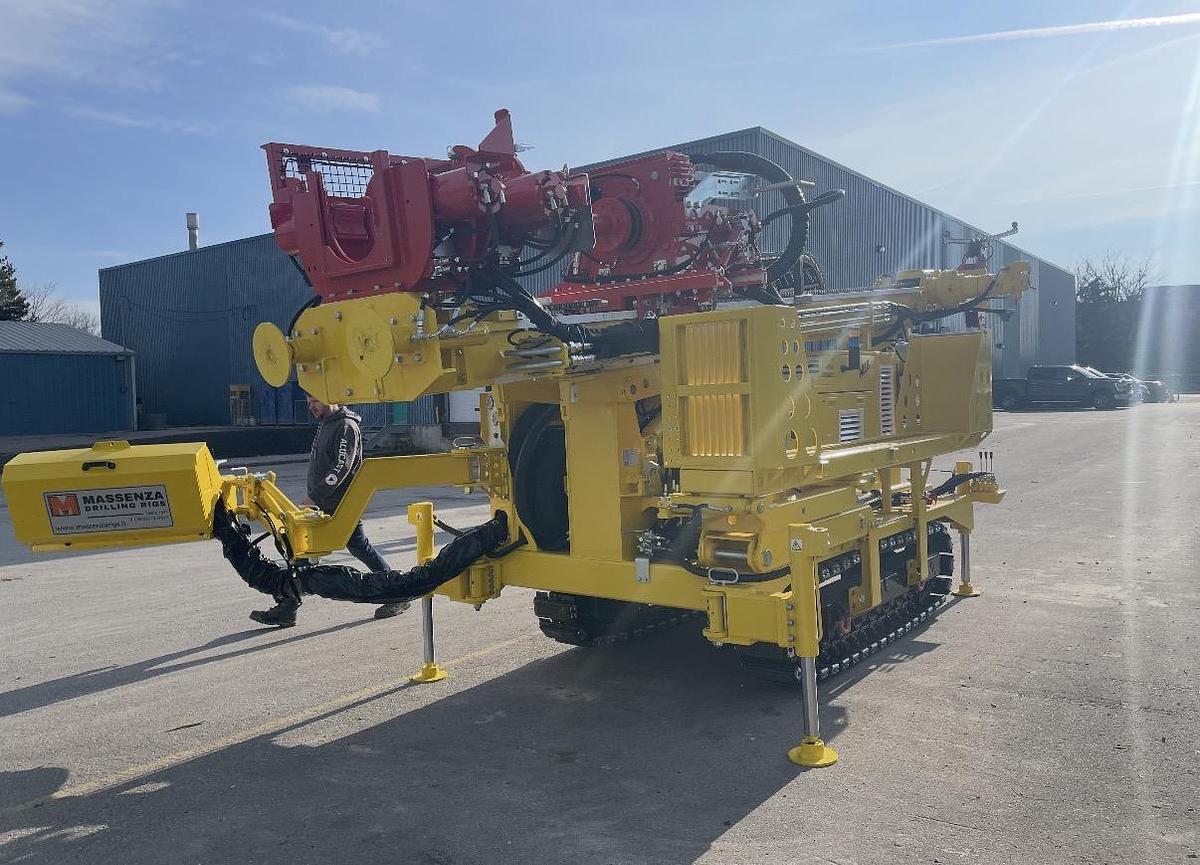

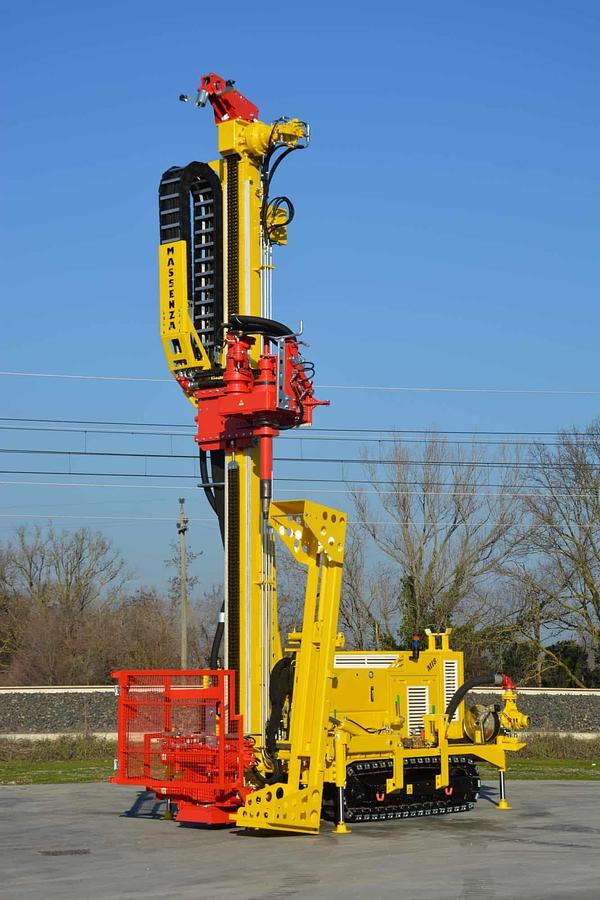

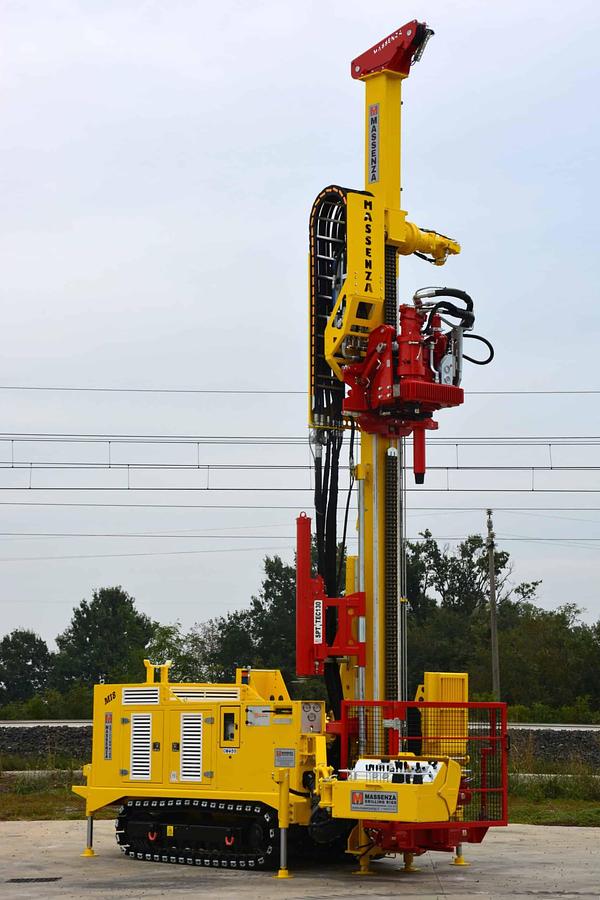

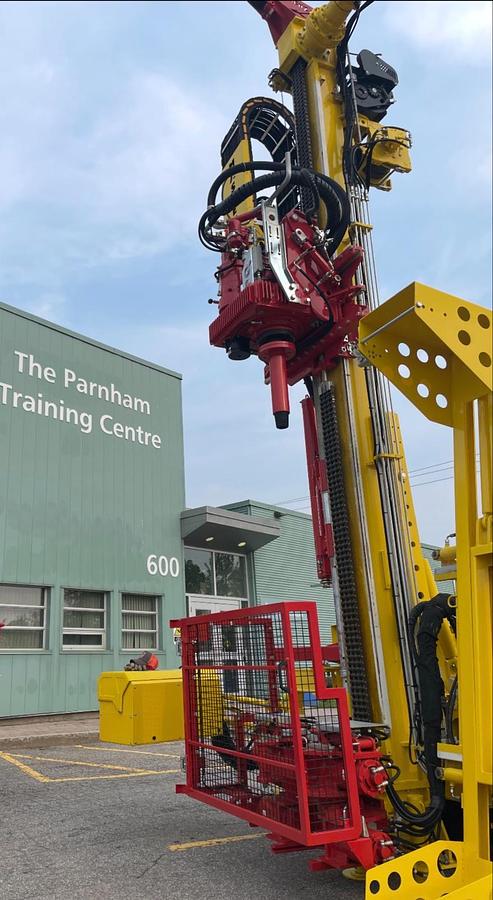

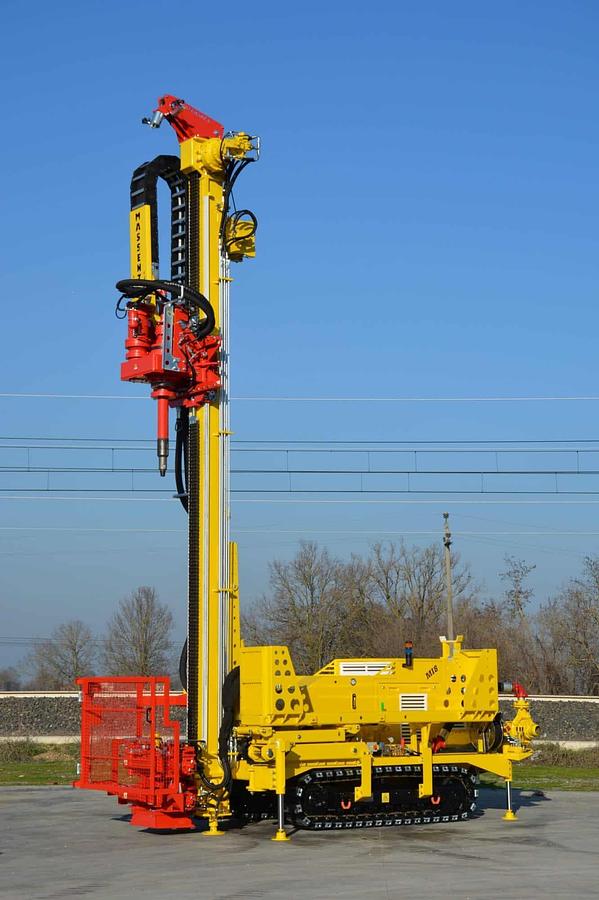

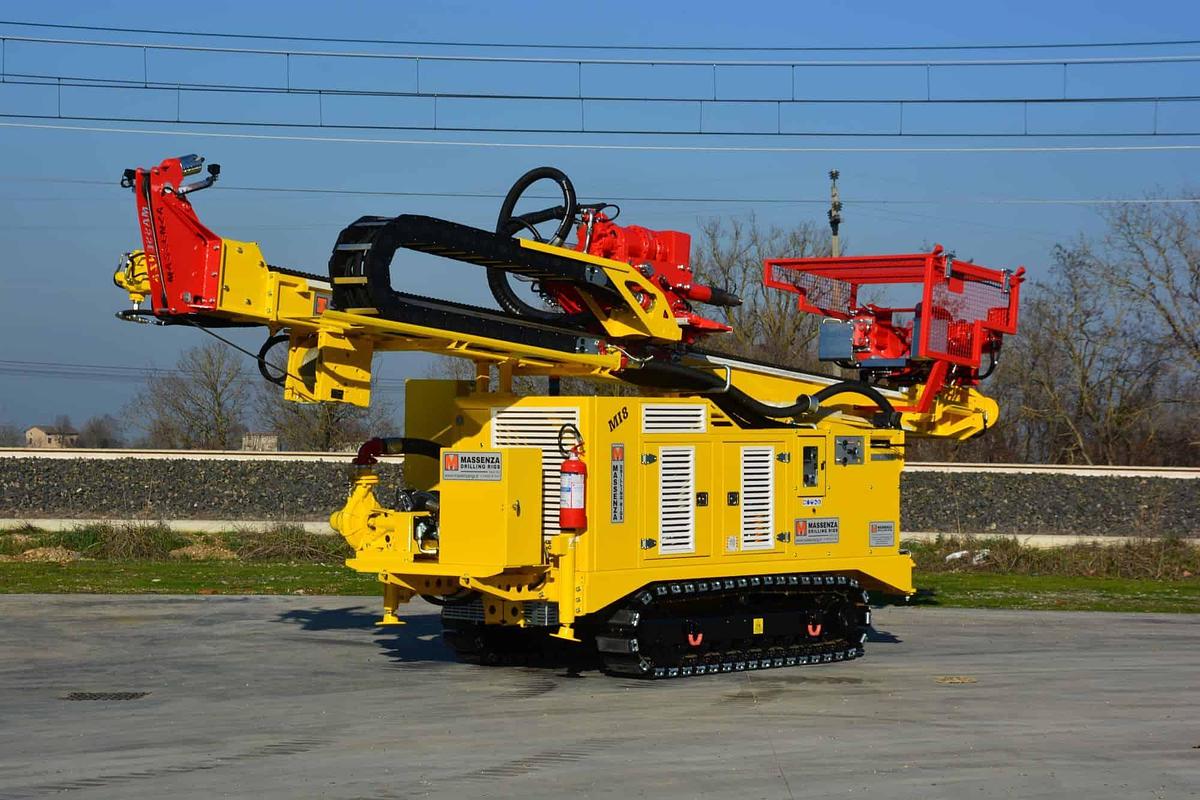

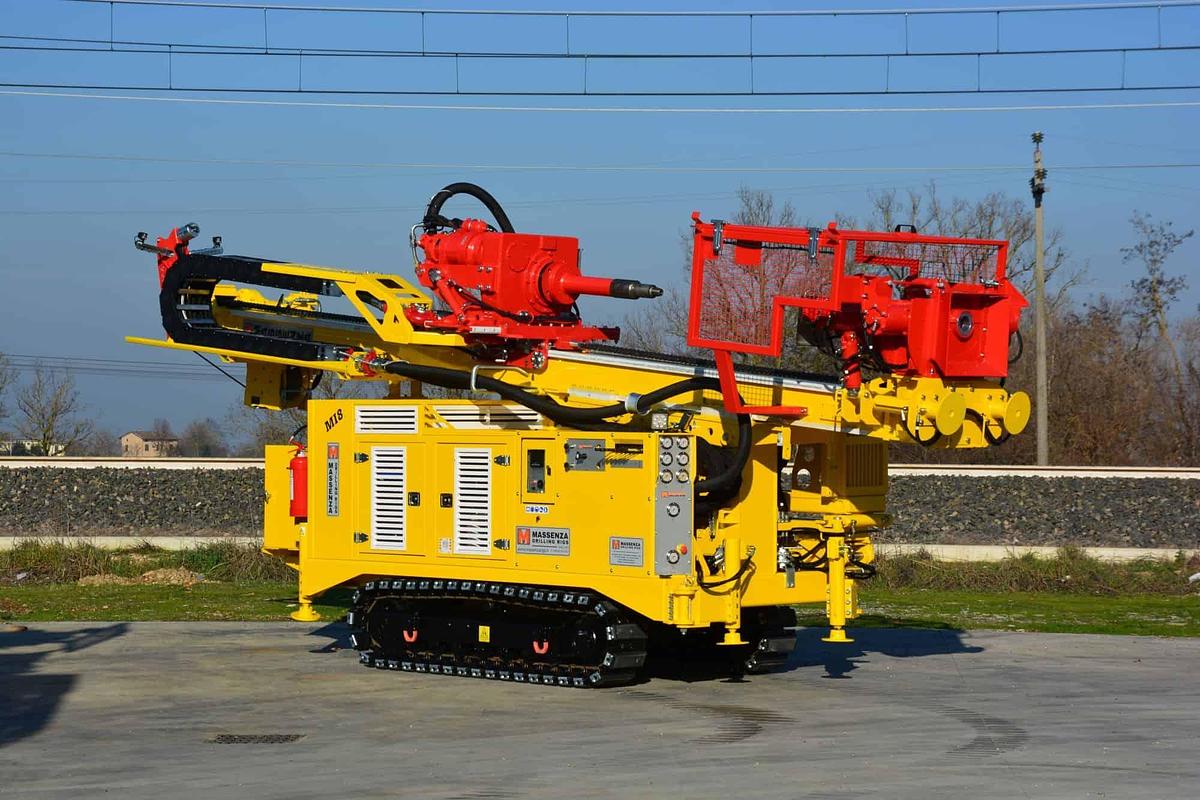

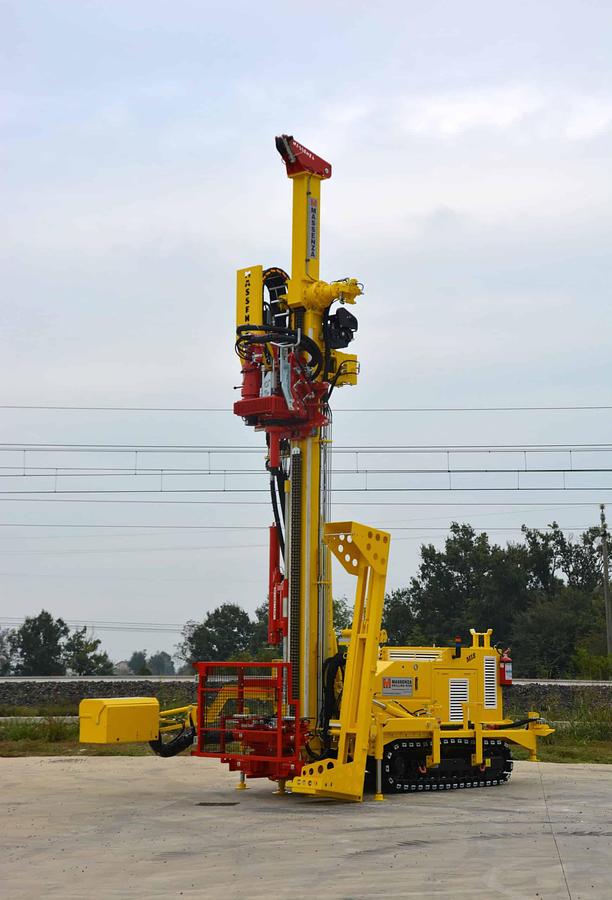

The Massenza MI8 is a versatile and powerful hydraulic drilling rig designed for water wells, geothermal, mineral exploration, and geotechnical applications. Compact yet robust, it combines mobility, high torque, and precision controls for demanding drilling environments.

Key Features

• Drilling Methods: Rotary drilling with direct circulation (Water, Mud, Air, Foam), Down-the-Hole Hammer, Auger, and Core Drilling.
• Engine: Deutz TCD 4.1 L4, 154 HP (115 kW) at 2300 RPM, Stage V / Tier 4 Final compliant.
• Hydraulic System:
• Load sensing with 4 pumps and 79.2gal oil capacity.
• Variable displacement axial piston pumps for rotary and feed circuits (up to 4,060 PSI).
• Crawlers: Steel tracks with bolt-on rubber pads.
• Width: 5 ft 6 in | Traction force: 15,000 lbf | Speed: 0.74 mph
• Mast & Feed System:
• Stroke: 13 ft 11 in | Pull-up/Down: 33,700 lbf (150 kN)
• Chain feed system with fast/slow drilling speeds and high-precision control.
• Mast height: 20 ft 10 in | Detachable 4.5 ft extension for 20 ft casing.
• Rotary Head (TM9M160):
• Torque range: 897–14,358 ft-lb
• Max speed: 762 RPM | Spindle drive: 3 ½" API IF
• Clamps & Extraction:
• Double hydraulic roughneck (MS360) with up to 39,000 lbf clamping force.
• Casing extractor pull: 55,000lbf.
• Winches:
• Main handling winch: 6,969lbf
• Wireline winch: 1,349lbf, 1,522 ft cable capacity.
• Hydraulics & Controls:
• Proportional control system with load/pressure gauges and emergency stop.
• Radio remote control for crawler movement and rig functions.
• Mud/Air System: 2” delivery pipework with hydraulic on/off control.
• Lighting & Safety:
• Mast and control panel LED work lights.
• Operator safety guard with interlock system and Restricted Operating Mode.

Additional Features

• Tilting drill pipe box (capacity: 35–48 rods (depending on diameter), 10 ft each)
