Massenza MI3

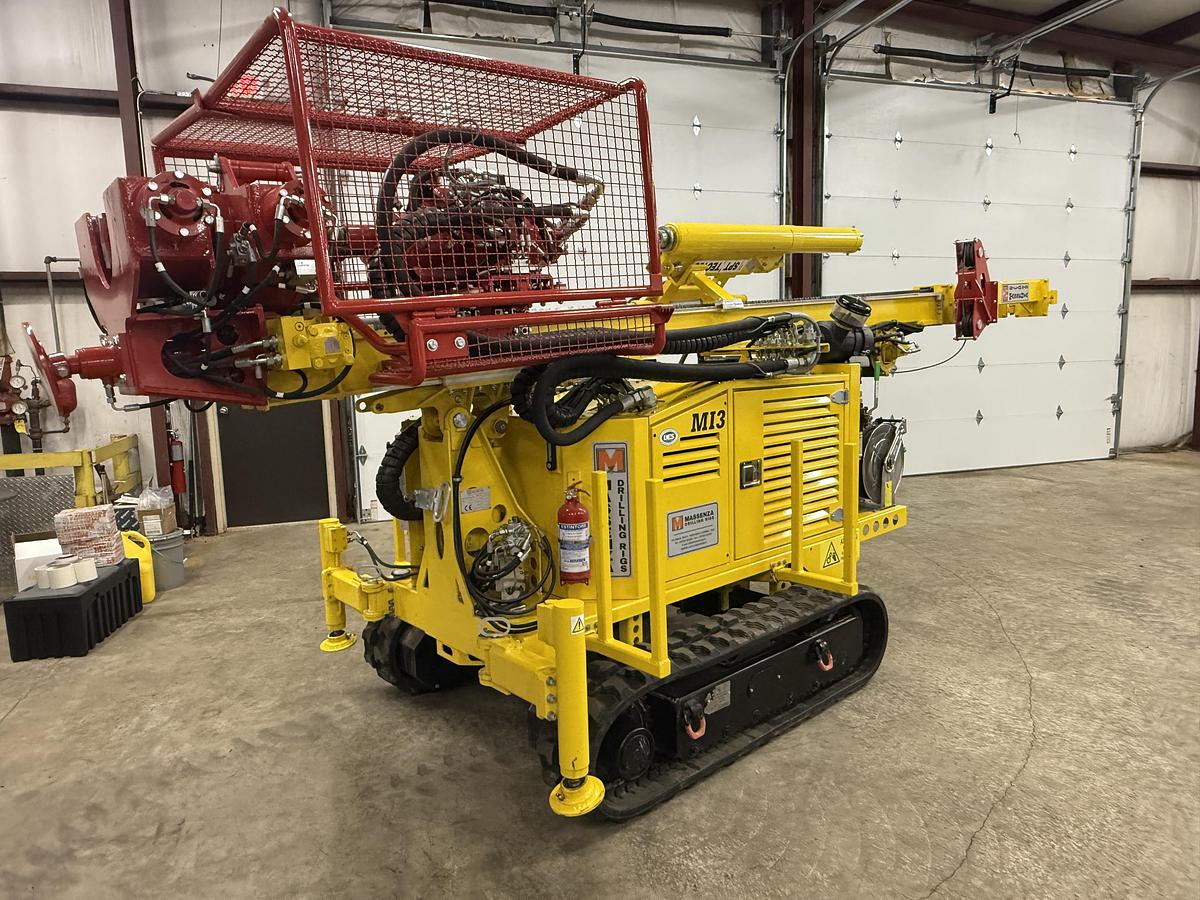

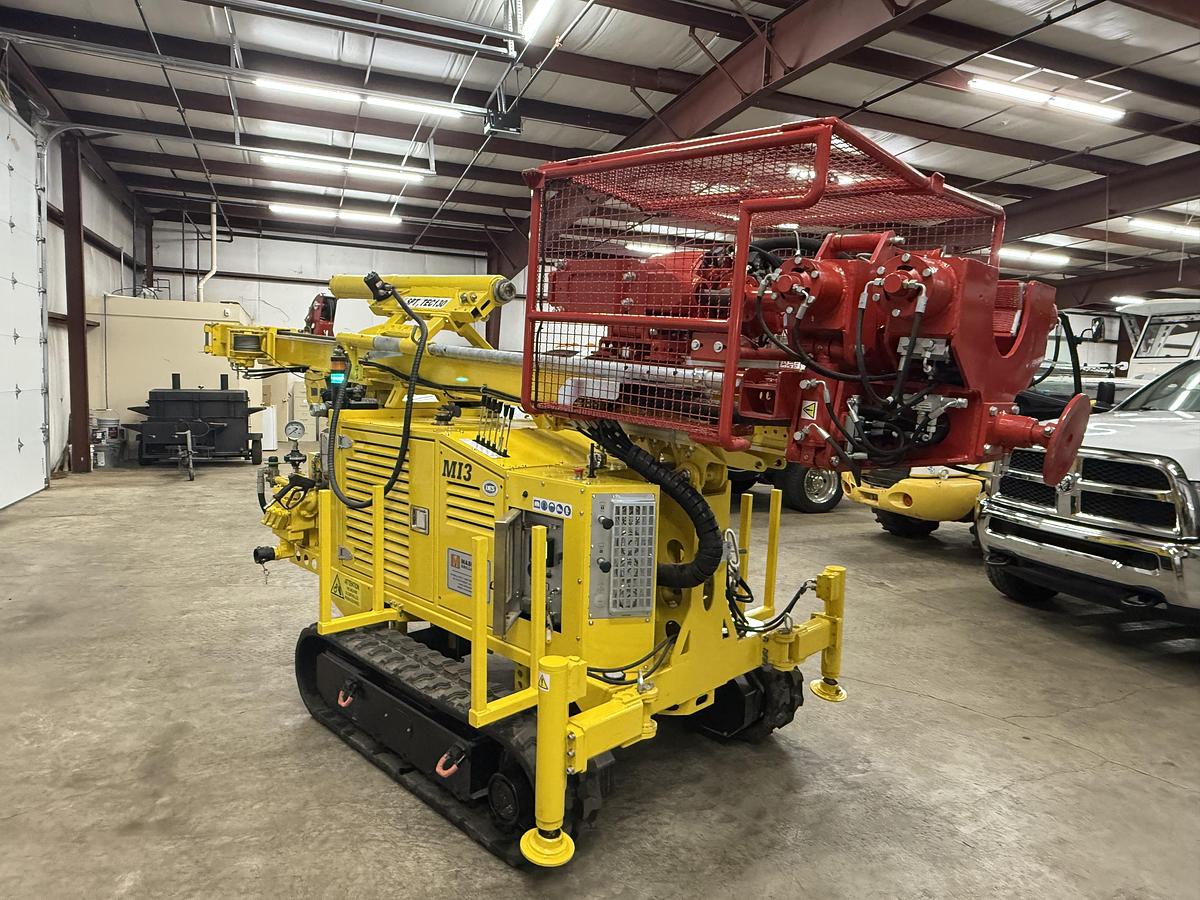

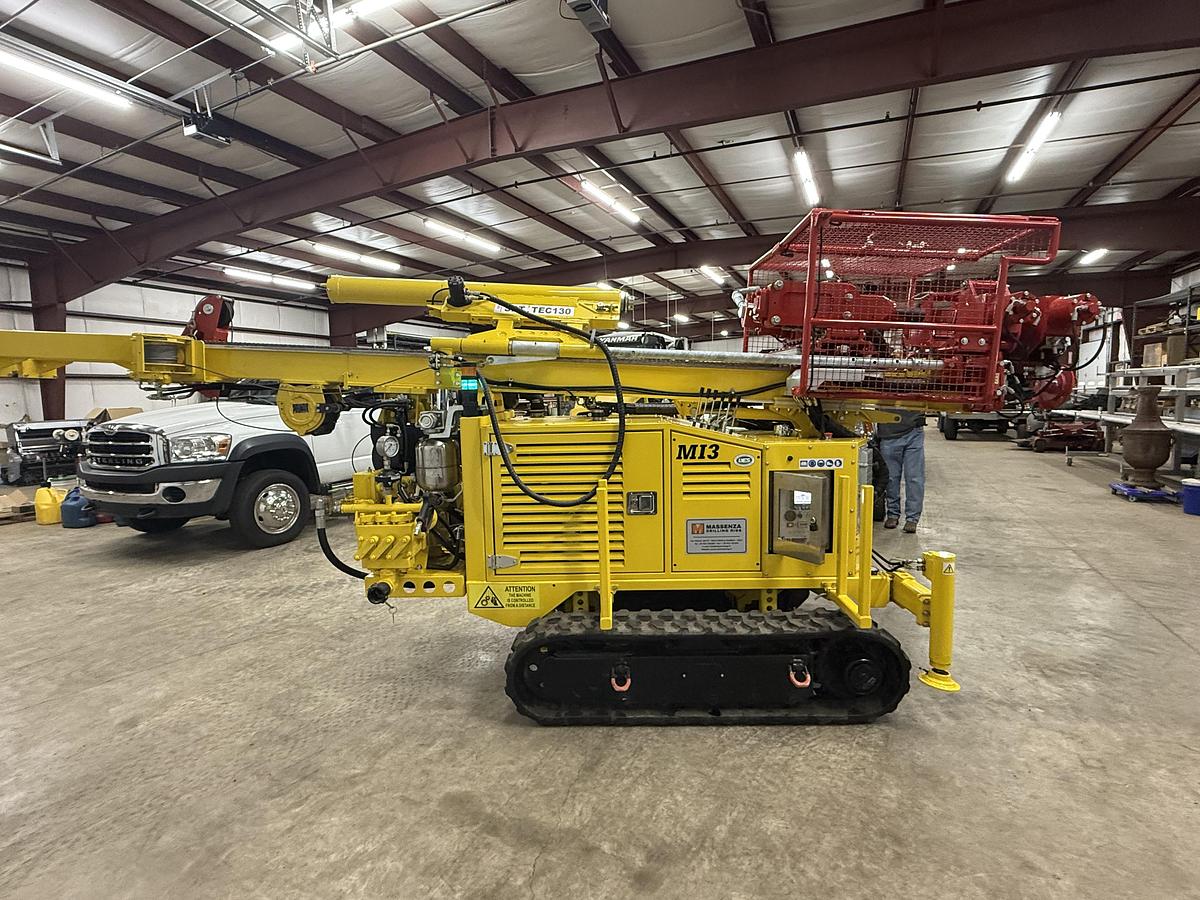

Massenza MI3 Hydraulic Drilling Rig

The Massenza MI3 is a versatile, crawler-mounted hydraulic drilling rig designed for water wells, geotechnical investigations, environmental applications, and micro-piles. Built with Italian engineering and heavy-duty components, the MI3 delivers excellent performance across multiple drilling methods including rotary, down-the-hole hammer, auger, and core drilling.

Key Features & Specifications

Applications:

Water well research

Geological & environmental drilling

Micro-piles and foundation work

Work Methods:

Rotary drilling with water, mud, air, or foam

Down-the-hole (DTH) hammer drilling

Auger drilling

Core drilling

Engine & Power Unit:

HATZ 4H50TICD diesel engine

73.4 HP (54 kW) @ 2,300 RPM

Tier 4 Final / Stage 5 compliant

Stainless steel fuel tank, 11.9 gal capacity

Hydraulic System:

30.3 gal oil tank with cooling & filtration system

Variable displacement axial piston pump: 50.2 gpm @ 3,916 PSI

Auxiliary geared pump for stabilizers, clamps, and mast functions

Undercarriage:

Rubber crawler tracks

Width: 5 ft 1 in – Length: 6 ft

Travel speed: 1.55 mph

Mast & Feed System:

Stroke: 7 ft 10 in (standard) – 11 ft 2 in (with extension)

Pull-up capacity: 8,206 lbf

Pull-down capacity: 8,206 lbf

Fast feed rate: up to 57 ft/min

Rotary Heads:

TM1C16: up to 4,199 ft-lb torque (0–64 RPM)

TM1C13: up to 2,100 ft-lb torque (0–128 RPM)

4-speed gearbox with multiple torque/speed settings

Winches:

Service winch: 2,248 lbf, 75 ft cable

Wireline winch: 1,323 lbf, 387 ft cable, max speed 423 ft/min

Mud Pump:

Triplex pump, 34.3 gpm @ 580 PSI

Additional Features:

Hydraulic roughneck (25,496 lbf clamping)

Casing extractor (21,164 lbf)

Hydraulic hammer for SPT (Standard Penetration Testing)

Protective operator guard with interlock system

Full remote-control system for tracks and rig operations

Dimensions & Finish:

Compact crawler footprint for easy site access

Painted in RAL 1021 yellow with RAL 3000 red details

Built for durability with epoxy primer and 120-micron final coating
